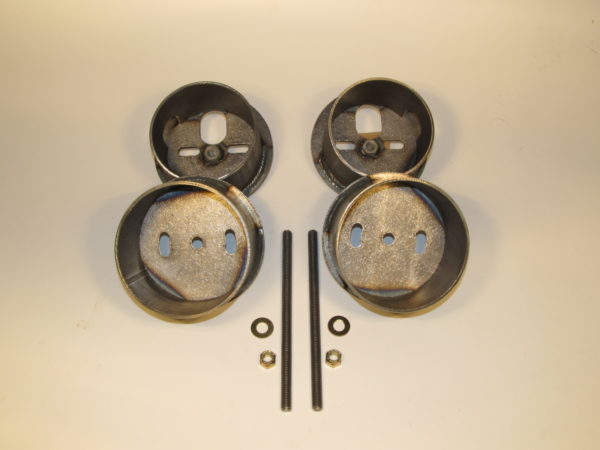

71-96 GM “B” Body (Impala, Caprice, Roadmaster) Front Bag Cups



Features include:

  • Pre welded
  • 1/4″ laser cut steel mounting plate
  • Includes 2 upper cups and 2 lower cups for front
  • Designed to be used with any manufacturer’s air springs
  • Designed specifically for 1971-1996 GM B-Body (71′-96′ Chevrolet Caprice, 73′-77′ Buick Regal, Chevrolet El Camino, Malibu, Monte Carlo, Oldsmobile Cutlass, Pontiac Grand Prix, 77′-96′ Cadillac, 1994–1996 Impala)


Our laser cut 71-96 Caprice or Impala air bag cups are just what you need to put air suspension on the front of your GM B Body!   These are constructed of 1/4 inch steel and are laser cut to be very precise.  The upper cups easily bolt in place after removing the factory coil spring and shock.  The upper cup slides up into the frame rail where the spring was originally.  It  is held in place by the center stud that goes through the hole where the shock originally mounted to the frame rail.  The lower cups sit in the lower control arm where the factory spring sat and are held in place by two additional studs and nuts.  The mounting holes are cut out to allow you to mount these to any manufacturer’s air bags.

Additional information

Weight 13 lbs
Dimensions 9 × 7 × 7 in
