Dakota Digital Odyssey Series I, Quad Air Pressure Monitor BLUE

$209.95$359.95

Dakota Digital instruments offer a high brightness, vacuum fluorescent display for excellent daytime visibility and a lifetime of trouble free use. Dakota Digital instruments are fully backed by a Limited 24-month Warranty against manufacturer defects and provide the accuracy and performance you’ve come to expect from Dakota Digital!

Description

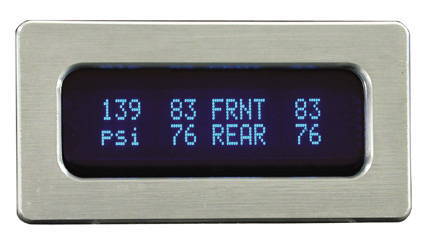

The ODY-19-6 Quad Air Pressure gauge can monitor and simultaneously display the front and rear pressure on front/ rear or four wheel independent air ride systems to display each air bag for proper pressure. The ODY-19-6 also displays the air tank pressure with other readings.

Dakota Digital instruments offer a high brightness, vacuum fluorescent display for excellent daytime visibility and a lifetime of trouble free use. Dakota Digital instruments are fully backed by a Limited 24-month Warranty against manufacturer defects and provide the accuracy and performance you’ve come to expect from Dakota Digital!

  • User adjustable high and low warning points can trigger a external light or buzzer. (not included)
  • Night dimming.

Range:
0- 300 psi.  A single sensor will be required for each pressure reading. For example, a full independent (front/back/side to side) air system would require 4 sensors (1 for each airbag). A fifth sensor can be added to monitor the air tank pressure if desired.

Resolution:
1 psi

  • Choice of either Blue, Green, or Teal display.
  • Choice of either Satin or Chrome bezel.
  • Machined aluminum bezel and housing.** Required BIM-19-2 Included



ODY-19-6: Quad Air Pressure Gauge Wiring and Setup Manual

ODY-19-6: Dimensions

Additional information

Weight 2 lbs
Dimensions 1.875 × 3.625 × 1.875 in
Dakota Digital Options

Brushed/Satin Bezel w/ 3 Senders 0-300psi, Brushed/Satin Bezel, NO Senders, Brushed/Satin w/ 5 Senders 0-300psi, Chrome Bezel w/ 3 Senders 0-300psi, Chrome Bezel w/ 5 Senders 0-300psi, Chrome Bezel, NO Senders
