Viair 480c Chrome 200psi

$250.21

The 480 is a truly rated, 200 PSI-rated compressor. It features horizontal cooling fins and a trapezoidal head design, a standard 3/8″ stainless steel braided leader hose with 3/8″ NPT inline check valve and insulated wiring.

200 PSI / 1.76 CFM

Note: Use thread sealant for proper installation. Teflon tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.

-100% Duty @ 100psi
-55% Duty @ 200psi
-3/8″ leader hose
-New style head design

Share this product
Facebook Twitter Pinterest

Description

Viair’s 480C Chrome air compressor is a truly rated 200 PSI compressor.
It features horizontal cooling fins and a trapezoidal head design which means these can radiate heat easier.

A standard 3/8″ stainless steel braided leader hose with NPT inline check valve and insulated wiring for a simple installation.

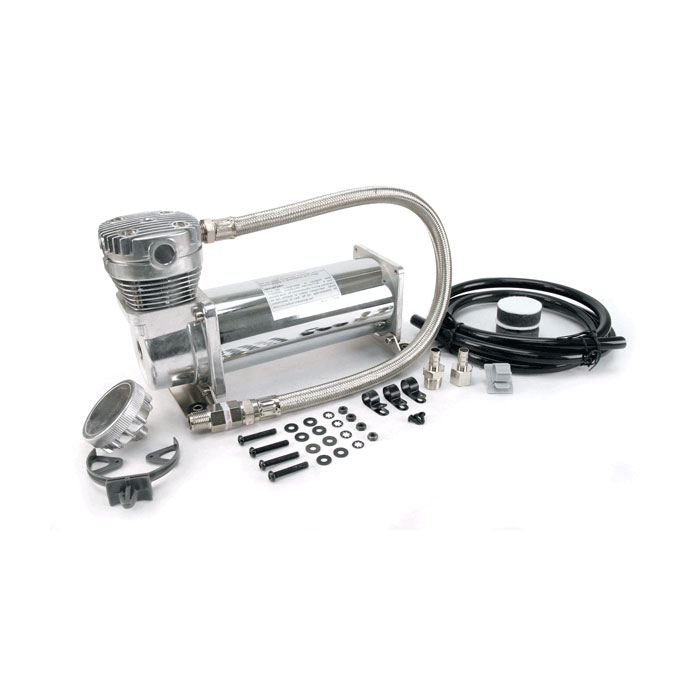

Kit Parts Also Included

  • Check Valve
  • Vibration Isolators
  • Mounting Hardware
  • Stainless Steel Braided Leader Hose
  • Air Line for Remote Mount Air Filter
  • Remote Mount Air Filter Assembly
  • (2) Replacement Air Filter Elements
  • Installation Instructions

Product Specifications

  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 100% @ 100 PSI (50% @ 200 PSI)
  • Max. Working Pressure: 200 PSI
  • Max. Air Tank Size: 5.0 Gallon
  • Max. Amp Draw: 23 Amps
  • Ingress Protection Rating: IP67
  • Dimensions: 10.87″L x 4.2″W x 6.75″H
  • Net Weight: 11.05 lbs.

Fill Rates

 2.5 Gallon Tank  Fill Rate
 0 to 145 PSI 2 Minutes, 29 Seconds
 110 to 145 PSI 57 Seconds
 0 to 200 PSI 5 Minutes, 2 Seconds
 165 to 200 PSI 1 Minute, 23 Seconds
 5.0 Gallon Tank  Fill Rate
 0 to 145 PSI 6 Minutes, 2 Seconds
 110 to 145 PSI 1 Minute, 55 Seconds
 0 to 200 PSI 10 Minutes, 8 Seconds
 165 to 200 PSI 2 Minutes, 20 Seconds

Performance Data

 PSI  CFM  Amp
 0 1.86 10
 10 1.75 12
 20 1.59 14
 30 1.52 15
 40 1.45 16
 50 1.41 17
 60 1.33 18
 70 1.26 18
 80 1.20 19
 90 1.13 19
 100 1.07 20
 110 0.99 21
 120 0.93 23
 130 0.88 22
 140 0.82 22
 150 0.75 21
 160 0.71 21
 170 0.67 21
 180 0.61 21
 190 0.55 20
 200 0.51 19
*Supply Voltage: 13.8 Volts

Note

  • Use thread sealant for proper installation.
  • For a proper seal, the recommended torque is 12-15 ft/lbs.
  • Teflon tape is not recommended.
  • Does not include a relay switch.
  • Does not include a pressure switch.

Downloadable User Manuals

Viair 12v 480C Air Compressor Chrome – 200psi
